1.5 hour
Flight time
≥150km
Range
3 kg
Load capacity（sea level）
130 km/h
Max cruise speed
﹥5000 m
Ceiling

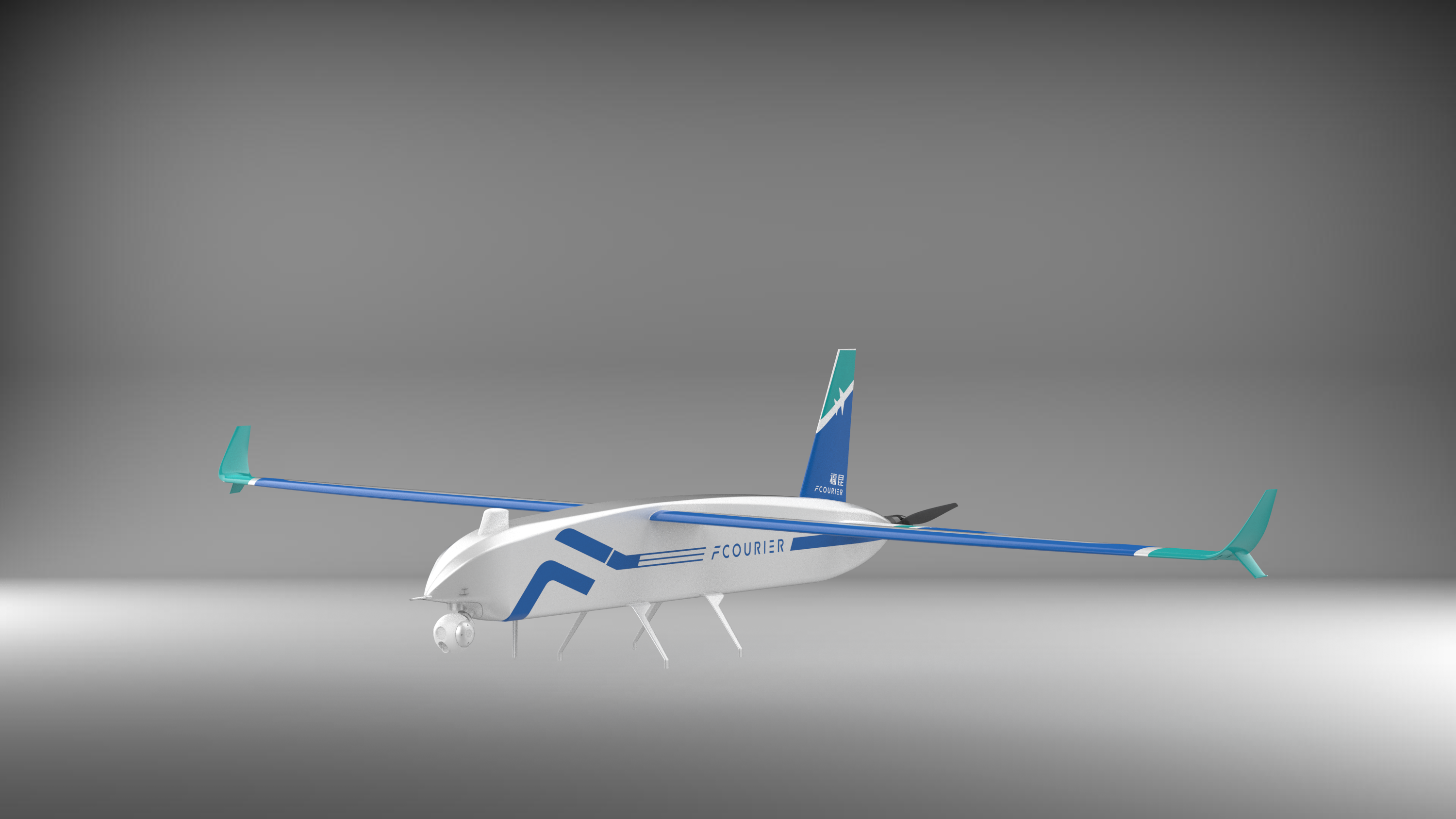

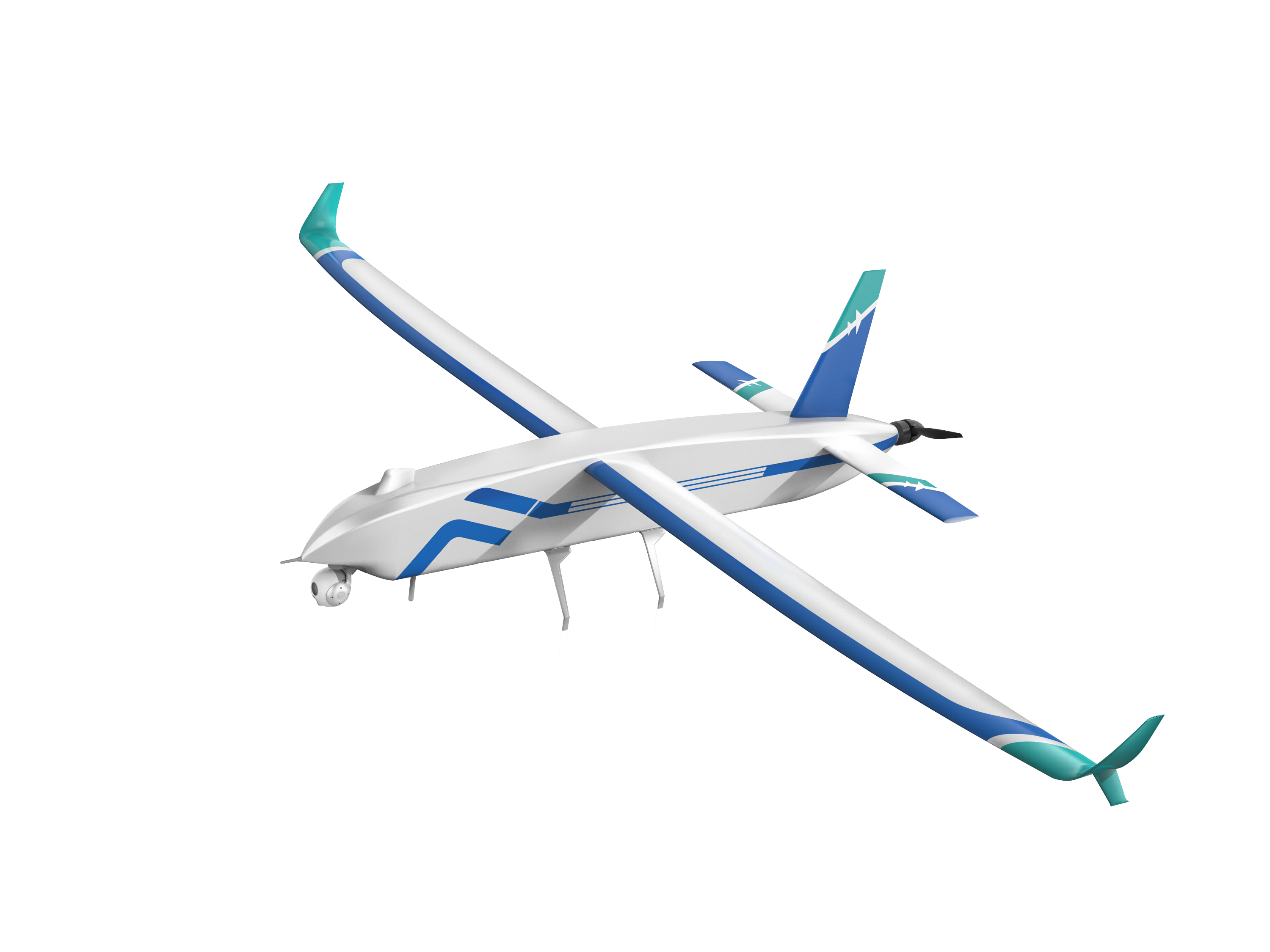

E6A electric vertical takeoff and landing fixed-wing unmanned aerial vehicle (eVTOL UAV) uses the original patent technology that retractable rotors implement vertical takeoff and landing. E6A has large load, long-endurance, a vertical takeoff and landing capability at an altitude of 5000 meters plateau. It can carry flexible payload such as portable visible light camera, oblique photography camera, multi-spectral camera, Dual Thermal & RGB sensor pod, laser radar, etc. The vertical load capacity is up to 3 kilograms and the maximum long-endurance can be over 1.5 hours.

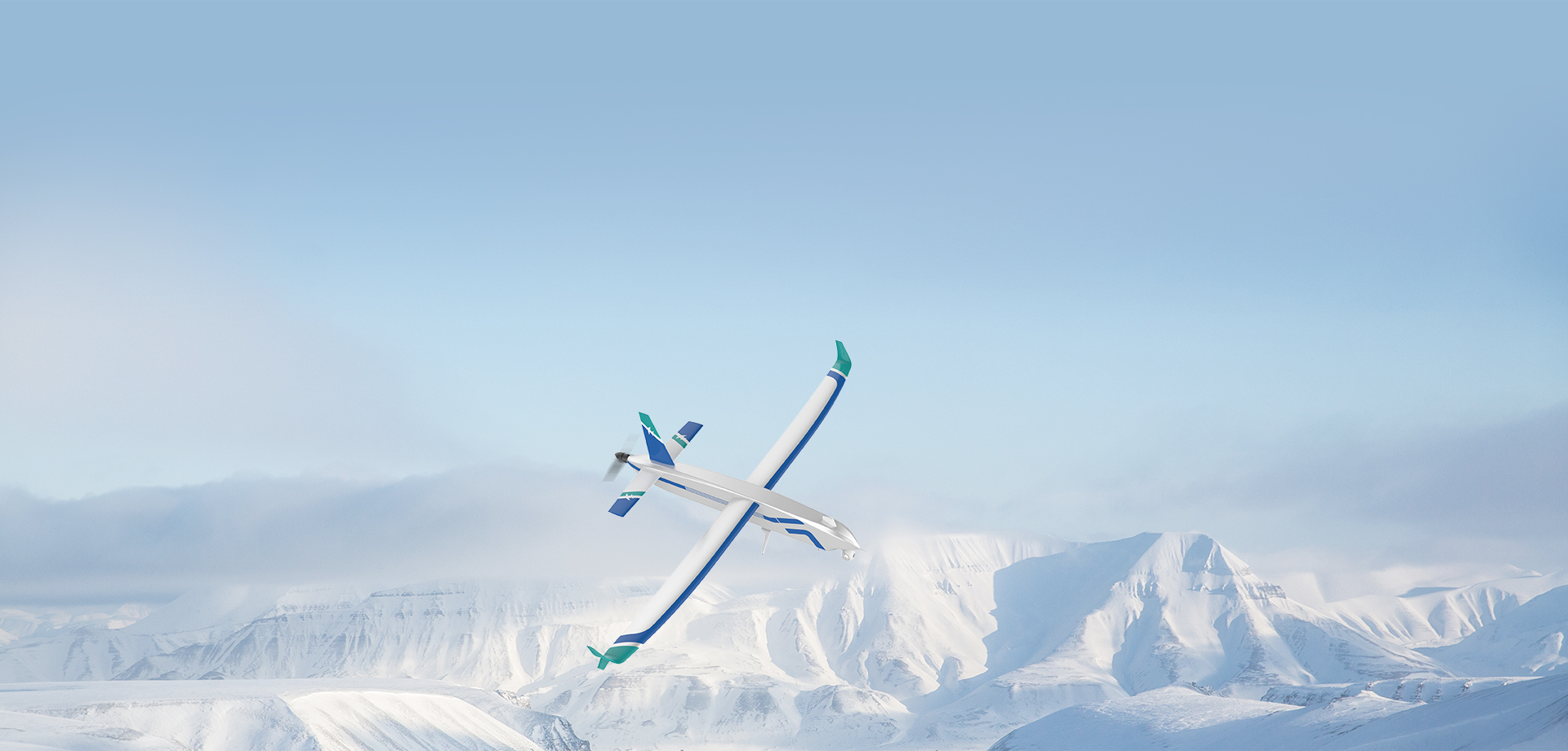

Fearless of complex environment.
Anti light rain，operate normally in temperature of -20℃-55℃
Payload configuration
Can carry dual-light pods to meet the needs of a variety of scenarios
Photoelectric pod
3 axis stabilization, 30x visible zoom/IR, tracking flight, target recognition
Reliable VTX
30km,VTX, to meet the needs of long-distance operations, built-in 4G/5G transmission module, support real-time video sharing

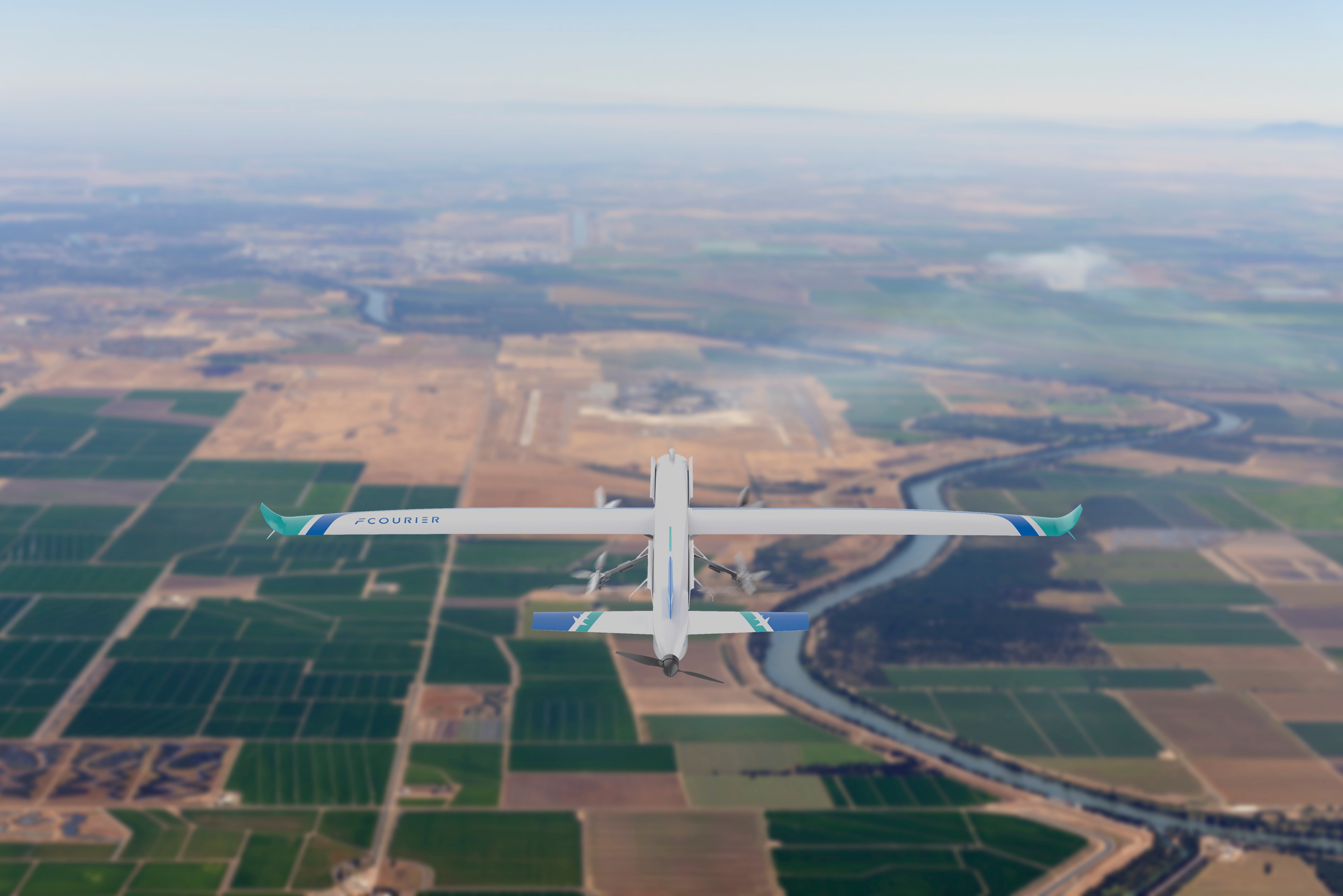

Planning the route, one click to takeoff
One-click takeoff by planning route to execute the mission without manual intervention. Support real-time mission change and manual takeover in case of emergency
Multiple redundancy, safe and reliable
Dual power system
When the fixed-wing mode is out of control, the aircraft can enter the multi-rotor mode; if the multi-rotor mode is out of control, the aircraft can enter the gliding mode.
Auto return
Support return automatically when low battery, abnormal aircraft attitude or trajectory deviation cannot be recovered.
Emergency Landing
The aircraft can be set up with more than 1,000 emergency landing points, and the aircraft can land vertically with multi-rotor or glide to the emergency landing point or designated landing point with fixed wing when abnormal.
System self-test
The aircraft will not be able to take off if there is any abnormality in the self-test before takeoff or if the air frame components are monitored to reach their design life.

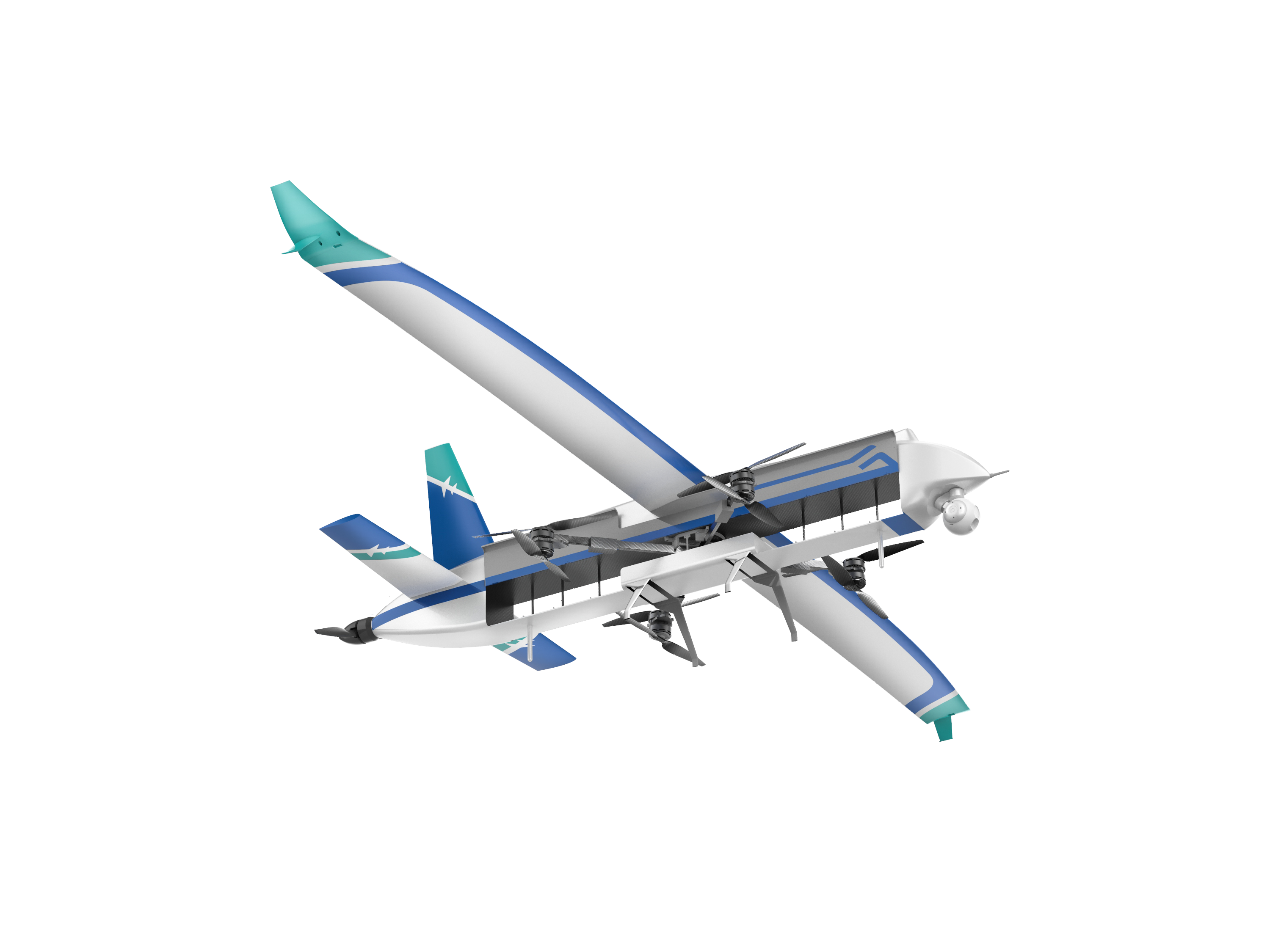

Quick disassembly and easy to operate
Quick disassembly structure design, 2 operators can complete the unpacking to take-off in 2 minutes.
Specifications
| Project | Paramete |
|---|---|
| Wingspan | 3.95m |
| length | 2.36m |
| Maximum take off weight | 24kg |
| Effective payload | 3kg(sea level) |
| Flight time/range (no wind，altitude 300m) |
>1.5h（1kg load with 2pcs batteries）/>150km |
| Box size | 2m*0.6m*0.6m |
| Economy cruise speed | 75-94km/h |
| Max cruise speed | 130km/h |
| Max practical ceiling | 5000m |
| takeoff and landing wind resistance | 13m/s |
| （Take off and land） 15m/s （cruise）25m/s | <2min，2 personnel operate |
| Accuracy of land and take off | 0.5m |
| Anti-rain capacity | Light rain |
| Operate temperature | -20~55℃ |
